Ora-Ïto Decorative kitchen hood, 60 cm

WHI643ORAB

Name: HOOD S10 WHI643ORAB GOR
Brand: Gorenje
SKU: 728153

P.A.S. System - Silent end efficient AdaptTech - So you can focus on the show Timer and refresh - Always a fresh kitchen

Product fiche

Features

P.A.S. System

Silent end efficient

The innovative parametric air suction system redirects air extraction from the central part to the outer edges of the hood. This approach optimises energy consumption, reduces noise and makes air extraction considerably more efficient.

So you can focus on the show

The hood detects the level of impurities and automatically adjusts the fan speed or even stops it completely when it is no longer needed. And you can turn all your attention to your wonderful meal.

Always a fresh kitchen

The hood can be automatically switched off in 10, 20 or 30 minutes. The refresh function is activated every hour and automatically starts refreshing the air for ten minutes.

Set the scene with perfect lighting

LED lighting provides excellent illumination of the cooking hob and adds a touch of elegance to your kitchen. Its useful life is thirty times as long as that of conventional light bulbs, and it saves up to ten times as much power.

Technical details

General information

Product group

Kitchen hood

Energy efficiency class

Installation type

Wall freestanding

Hood type

Decorative

Operation type

Venting with air extraction or recirculation

Cabinet material

Painted steel /glass

Material of chimney

Varnished metal

Cabinet colour

Black painted/black glass

Colour of decorative chimney

Black

TouchFree Inox

Efficiency

Grease filtering efficiency class

Lightning efficiency class

Fluid dynamic efficiency class

Total power of the motors

278 W

Number of speed level

Number of lights

Number of motors

Airflow boost position (PowerBoost 2) - extraction

740 m³/h

Maximum extraction rate by extraction operation

570 m³/h

Air flow by extraction version, step 1

342 m³/h

Air flow by extraction version, step 3

570 m³/h

Annual energy consumption

60.6 kWh

Control

Control type

Touch control

Remote control

Functions

AdaptTech: Automatic fan operation

Yes

Timer function

Yes

Automatic interval suction

Constant ventilation ReFresh

Features

SmartCurve

Perimetric suction

Yes

Grease filter indicator

Yes

Highly efficient filter

GentleClose

Illumination setting

Dimmer function

Equipment

Lamp type

LED

Grease filter

Washable aluminium with polyurethane foam

Number of grease filters

Motor type

Capacitor

External motor

No return airflow flap

150 mm

Additional equipment

Recirculation set number

683037

Coal filter code (optional as separate purchase)

180177

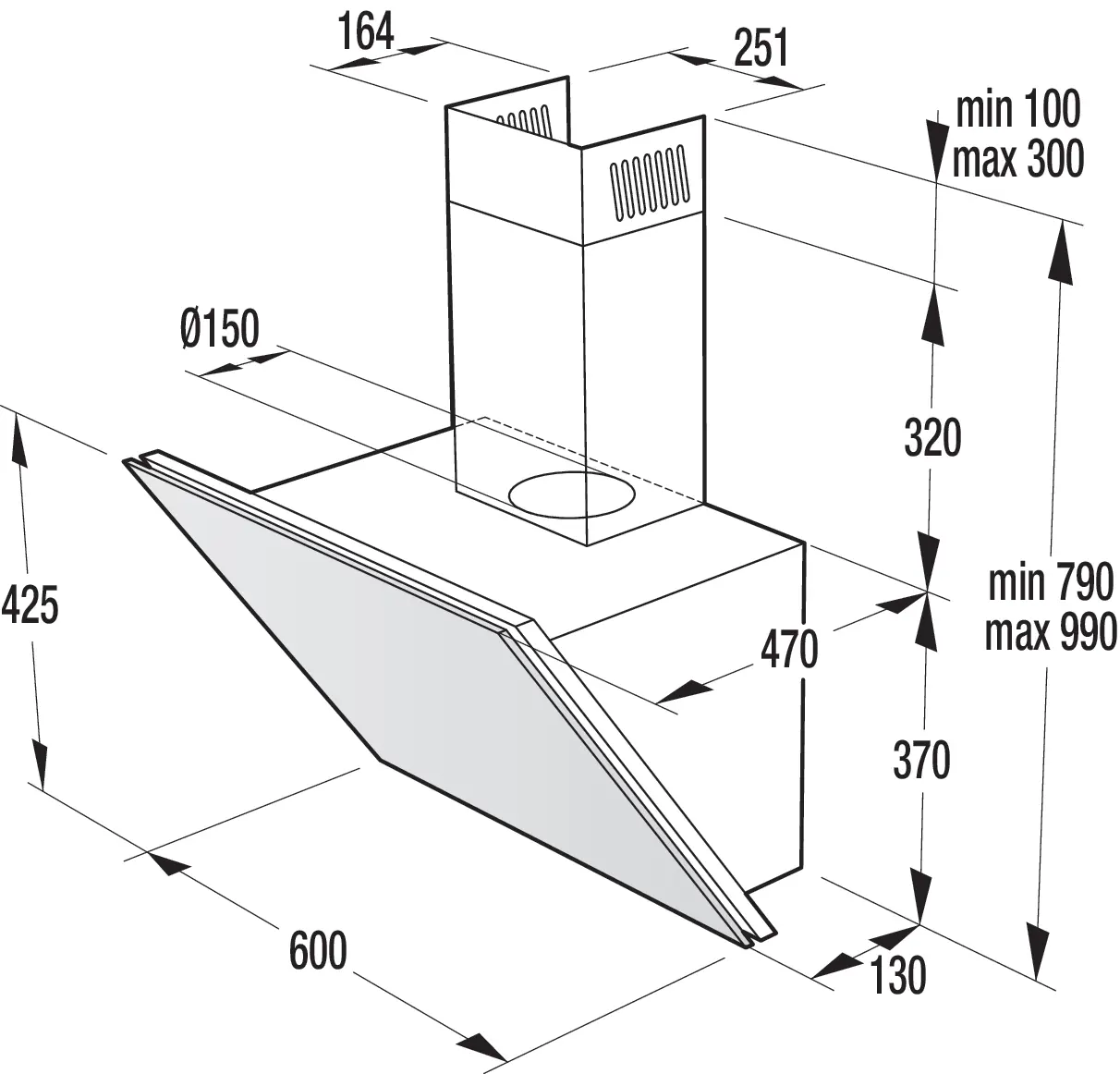

Technical data

Noise level (max)

65 dB(A)

Min. height of the chimney

420 mm

Max. height of the chimney

620 mm

Length of electrical cord

1400 mm

Width of the product

600 mm

Height of the product

425 mm

Depth of the product

470 mm

Width of the packed product

705 mm

Height of the packed product

520 mm

Depth of the packed product

562 mm

Gross weight

30 kg

Net weight

26 kg

Voltage

220-240 V

Frequency

50 Hz, 60 Hz

Connected load

284 W

Product code

728153

EAN code

3838782027437
